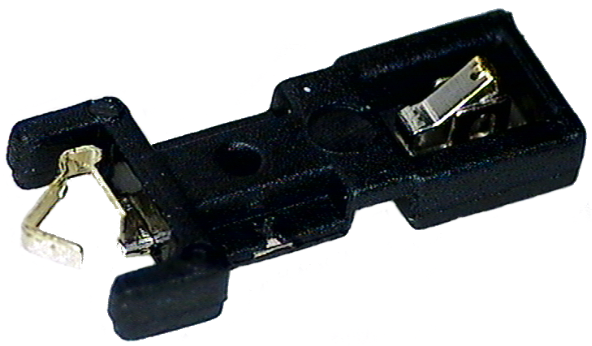

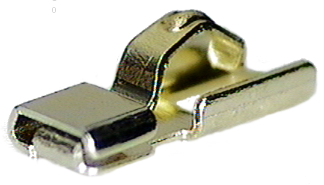

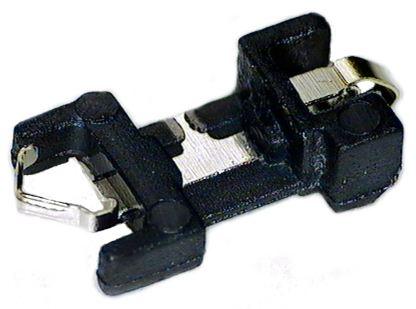

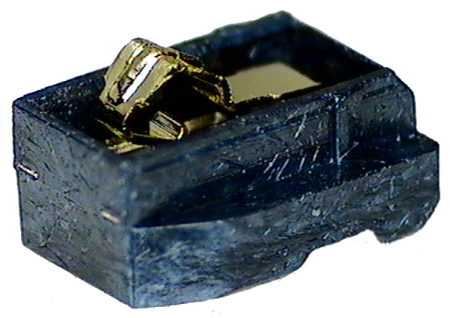

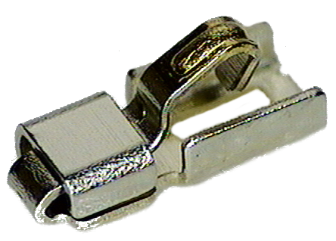

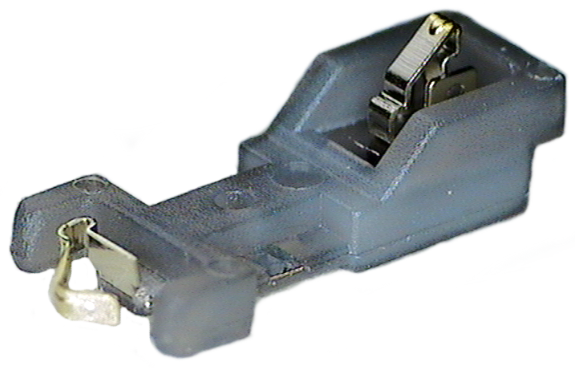

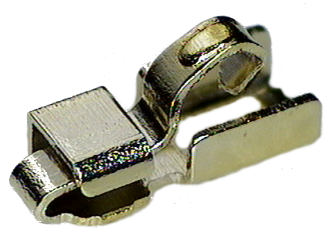

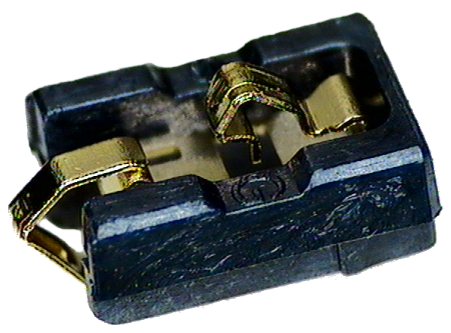

WireLess Charge Patch Module... L*W*H Material Thickness Remarks 회로 Pattern이 구성된 PCB(FR4)에 Plymer(자성패드)를 접착하여 무선 충전 기능을 구현하는 충전 Patch. H1.3 Contact Finger L*W*H 2.80*1.00*1.30 Material Ycut FX-EH Thickness 0.10T Remarks H1.2 Contact Finger L*W*H Material Thickness Remarks H1.1 Conact Finger L*W*H 2.70*1.00*1.10 Material Ycut Fx-EH Thickness 0.1T Remarks H0.9 Contact Finger L*W*H 2.60*1.00*0.90 Material Ycut FX-EH Thickness 0.08T Remarks H0.6 Contact Finger L*W*H H0.6 Contact Finger Material C7035 Thickness 0.06T Remarks Z-Z DC Clip L*W*H 2.85*2.24*2.05 Material Ycut FX-EH / LCP E130i Thickness 0.08T Remarks Y-Z Clip L*W*H 3.40*2.10*1.65 Material Ycut FX-EH / LCP E130i Thickness 0.07T Remarks H1.5 PPZ CONNETOR (A-TYPE) L*W*H 4.75*3.00*1.50 Material C7035 / PBT B4300G6 Thickness 0.08T Remarks H2.3 PPZ CONNETOR(C-TYPE) L*W*H 6.35*3.00*2.30 Material C7035 / PBT B4300G6 Thickness 0.08T Remarks H1.25 PPZ CONNETOR(B-TYPE) L*W*H 6.65*3.00*1.25 Material C7035 / PBT B4300G6 Thickness 0.08T Remarks H5.0 Contact Finger L*W*H 3.90*2.40*5.00 Material Ycut Fx-EH Thickness 0.10T Remarks
